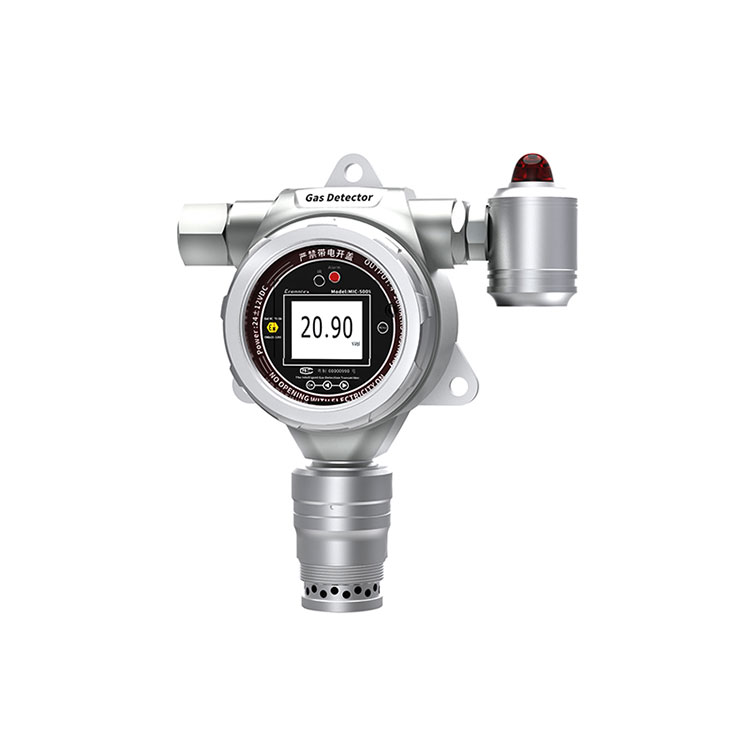

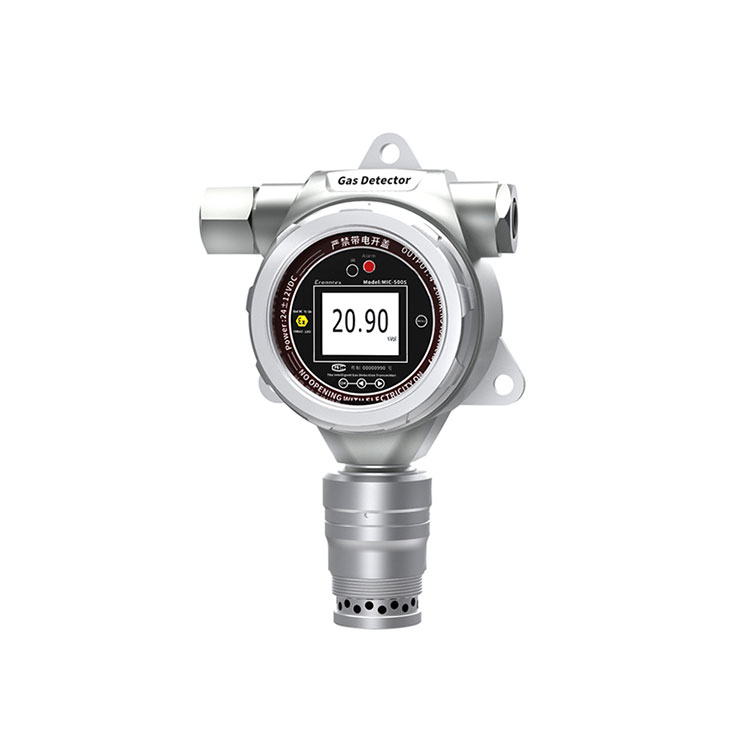

Онлайн -детектор фиксированного газа

FEATURES:

• ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
• IR controller for remote operation for 15 meters distance
• Automatic zero point calibration function
• Upto 5 level calibration points
• Setting recovery function
• 1.7inch colorful LCD display
• Unit switch function
• Aluminum enclosure, support 304 or 316L stainless steel
• Detection method: diffusion or pumped
• Support 3-wire or 2-wire 4-20mA signal output
• Standard output: RS485, 4-20mA & Rely
• Optional output: Hart or LAN, Wifi, 4G, Lora wireless transfer
• Standard with computer software for data collection, analysis and export
• Support sensor type:NDIR, Laser, PID, EC, TCD, MOS,LEL and etc
• Installation: wall-mounted, pipeline or flange

SPECIFICATIONS

• Single gas detector: CO
• Detection principle: EC electrochemical sensor
• Measuring range:0-20000ppm
• Resolution: 1ppm
• Accuracy:≤±3% (F.S)
• Respond time: T90≤30S
• Sensor lifetime: 2-3 years
• Detection method: diffusion type
• Installation: wall-mounted
• Output type: RS485, 4-20mA & Rely(2x)
• Power supply: 24VDC, +-5%
• Protection level: IP67
• Product Size: 240×160×90mm
• Weight: 1.6kg, aluminum enclosure
• Protection grade: Ex d II C T6 Gb
• Electrical interface: 3/4NPT
• Alarm mode: LCD display + sound & light alarm
• Working environment: -40℃～+70℃, ≤95%RH (non-condensing occasions)
• Warranty time: 1 year
